Torque Arms > Standard

Reduce Injuries and Maximize Productivity with Advanced's Torque Reaction Arms

Key Points

  • Air and electric tool capability
  • Eliminates torque reaction ranging from 10 to 500 ft/lbs
  • Functional for tool weights from 1 to 30 lbs
  • Heavy duty construction provides long life and durability
  • Various mounting options: floor, table, overhead, rail
  • Parallel arms increase strength and keep tools aligned to work surface
  • Accommodates inline, 90 degree or pistol grip tools
  • Dual cylinder lift provides smoother operation and handling
  • Customization available
  • Proudly made in the USA
Model Min. Reach (in) Max. Reach (in) Max. Torque(ft-lb) Max. Tool Wt. Vertical Stroke (in)
TA10-1S 3 36 10 4 17
TA15-2S 3 36 15 4 17
TA15-2B 3 36 15 10 17
TA35-2B 3 36 35 10 17
TA100-2B 4 36 100 15 18
TA200-2B 6 36 200 20 24
TA500-2B 8 42 500 30 24

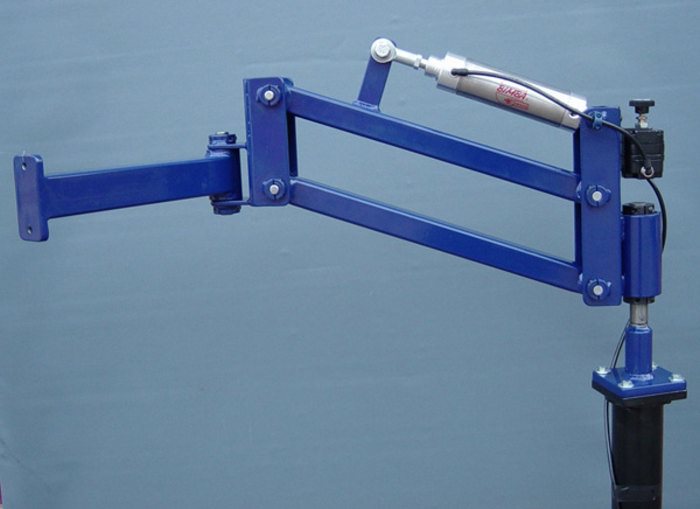

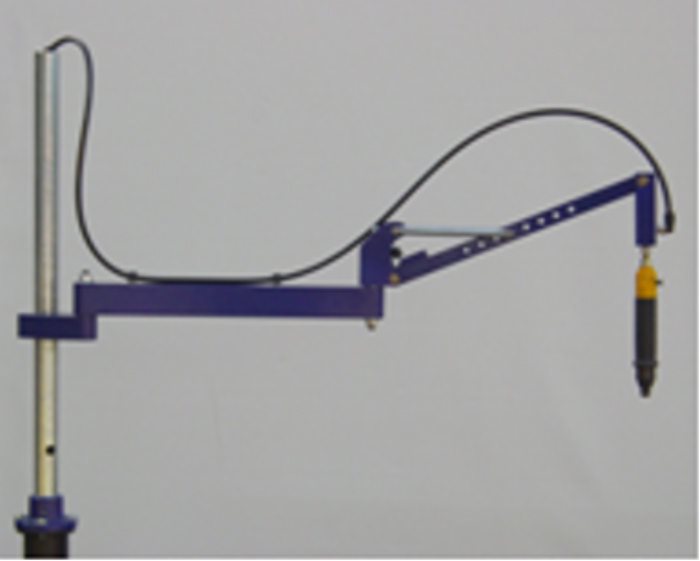

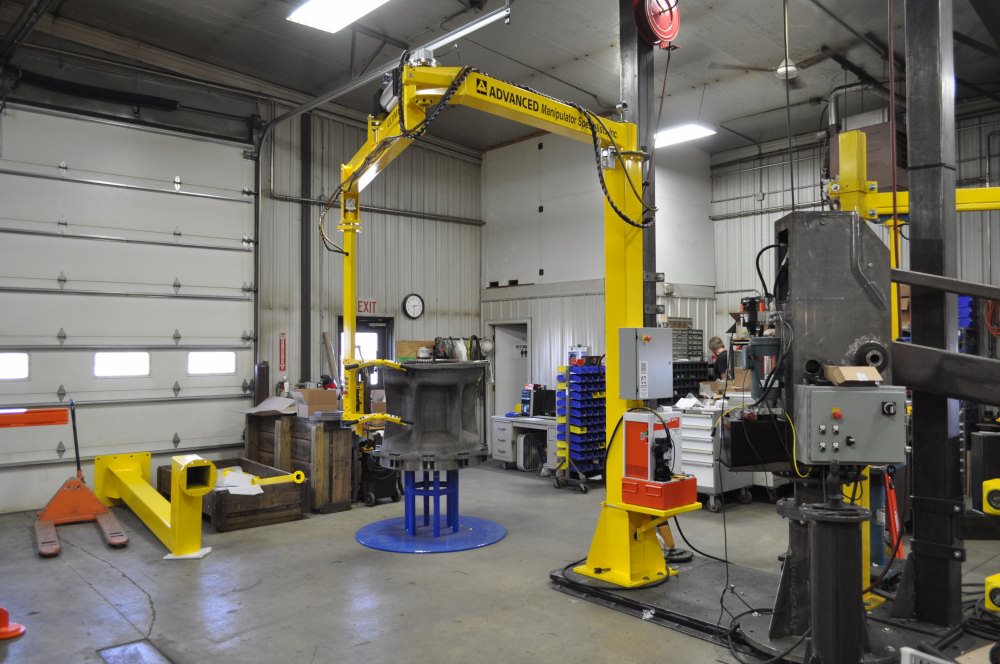

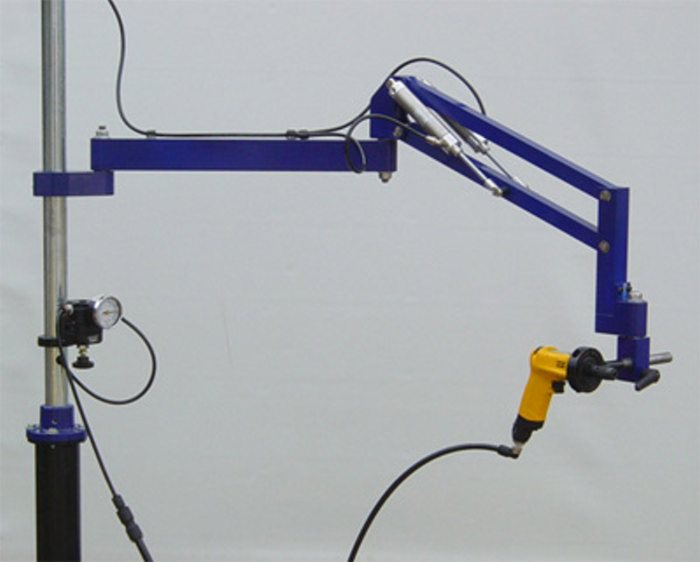

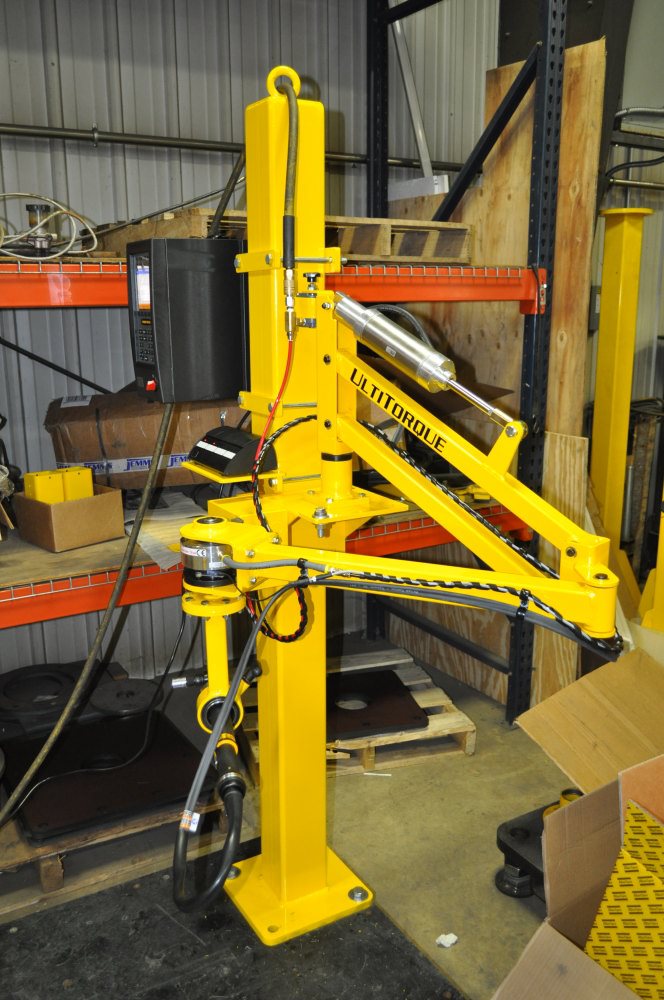

Gallery

Click an image to view a larger version with product description.

... ... ... ... ... ... ... ...
