The Mobulator֭™ AC is an omni-directional mobile manipulator that brings efficiency and ease to the production process. This material handling mobile manipulator allows the operator to lift, transport and manipulate product from the driver's seat. A truly multi-task machine, the Mobulator™ AC is a fully mobile industrial manipulator that can easily and quickly connect with multiple end-effectors. It employs the mobility, power, and efficiency of a forklift and combines it with the clearance, accuracy and ergonomics of an industrial manipulator lift assist.
With this unique mobile lift assist, the "line" can be taken out of assembly. The Mobulator™ AC is able to replace multiple material handling stations and free floor space of tracking, rails, and floor-mounted obstructions. Increase productivity and efficiency to the manufacturing process with the unique ingenuity of the Mobulator™ AC.
The Mobulator™ AC provides superior visibility and clearance. The omni-directional mobile manipulator system allows superior maneuverability with zero-turn. It provides precise product placement and keeps product integrity intact. Its durable design and construction are built to withstand rugged work environments.
This material handling mobile manipulator is electrically powered and emission-free. It is ergonomically designed and provides quiet operation and smooth motion. The Mobulator™ AC is energy efficient and uses AC technology. This mobile manipulator lift assist provides maximum visibility during loading, transport, and manipulation, providing safe and efficient material handling. Operator-friendly joystick controls enhance both driving and manipulator functions.
Designed with a multi-hose hydraulic coupling, it allows the operator to quickly interchange hydraulic end-effectors under pressure with no oil leakage. This unique feature comes standard on every hydraulic powered end-effector. With one hand the operator can simply move the lever to release or lock multiple hoses at one time. Switching quickly between end-effectors allows the operator to maximize productivity. Optional quick-attach end-effectors are available to multitask one machine.
The Mobulator™ AC mobile manipulator is also designed with an AC drive motor and controller which provides faster performance, improved control, greater power efficiency, elimination of fuel emissions, and less maintenance due to brushless motors. The 48 Volt power supply along with AC technology provides exceptional power and longer operation per charge.
Customized end-effectors accommodate virtually any product and weight load, whether light and intricate or heavy and bulky. Quick-attach end-effectors multitask one machine, allowing the operator to maximize production efficiency. Virtually any product may be lifted, transported, rotated, suspended…manipulated.
Advanced Manipulator Specialists' engineering team is professional, responsive, talented and easy to work with. Whether the application is simple or complex, Advanced's team finds great gratification in bringing solutions to the production floor.
Mobile Omnidirectional
Tire Track Manipulator
Drive this mobile omnidirectional manipulator and take the "line" out of assembly. Customized to position, lift, rotate, and transfer any product: tires, undercarriages, castings, rolls, etc. Multi-task one machine by utilizing multiple quick-attach end-effectors.

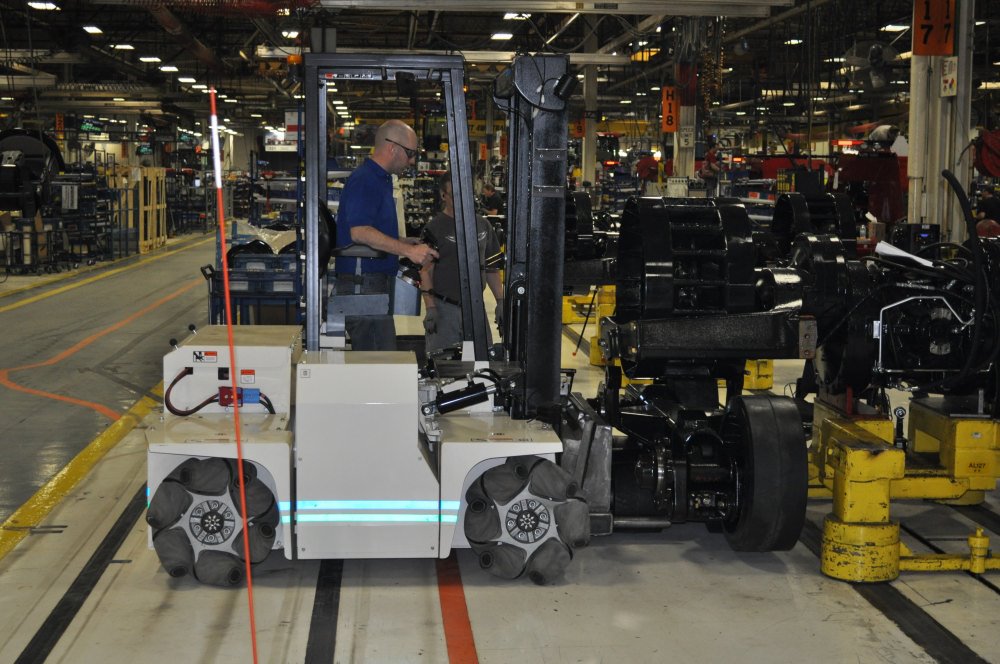

Drive The Omnidirectional Mobile
Manipulator Lifting Undercarriages
Drive this mobile omnidirectional manipulator and take the "line" out of assembly. The Mobulator™ is customized to position, lift, rotate, and transfer any product: tires, undercarriages, castings, rolls, etc. Multi-task one machine by utilizing multiple quick-attach end-effectors.

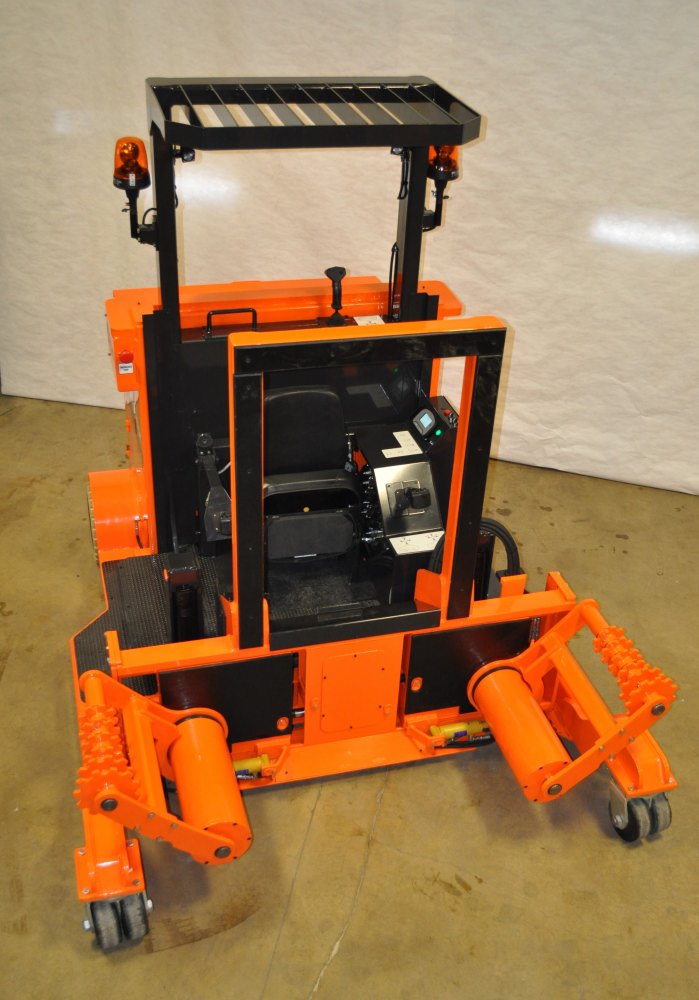

Mobile Tire And Wheel Manipulator
The Mobulator AC Tire Manipulator is an industrial manipulator that performs all functions from the driver's seat. Tire manipulator shown handles a 6000 lb. tire. Advanced AC Technology provides, safe, quiet, and minimal maintenance. Utilizes a 48 volt battery. Customize this manipulator to accommodate your product; virtually no product restriction.
Click an image to view a larger version with product description.
